Guides for Rods  (Wrapping Guides)


　

Stainless Steel Stamped Frame With Shock Ring

W101.OSEG/DR: WHITE Frame, Black Ceramic Ring, Dark Red Shock Ring.
W102.GOSEG/Y: Gold Frame, Black Ceramic Ring, Yellow Shock Ring.
W103.OSCG/LE: White Frame, White Ceramic Ring, Light Blue Shock Ring.
W104.BOSEG/LN: Black Frame, Black Ceramic Ring, Light Green Shock Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring

W111.WO/BOSDG: Black Frame, Dynaflo Ring.
W112.WO/OSAG: White Frame, Alumina Ring.
W113.WO/OSHG: White Frame, Hardloy Ring.
W114.WO/BOSAG: Black Frame, Alumina Ring.

　


　

Stainless Steel Stamped Frame With Shock Ring

W201.GSEG/DR: Gold Frame, Black Ceramic Ring, Dark Red Shock Ring.
W202.SCG/LE: White Frame, Ceramic Ring, Light Blue Shock Ring.
W203.SEG/LN: White Frame, Black Ceramic Ring, Light Green Shock Ring.
W204.BSEG/Y: Black Frame, Black Ceramic Ring, Yellow Shock Ring.

　


　

Stainless Steel Stamped Frame With Shock Ring

W301.GBEG/LN:Gold Frame,Black Ceramic Ring,Light Green Shock Ring.
W302.BEG/LR:White Frame,Black Ceramic Ring,Light Red Shock Ring.
W303.BCG/LE:White Frame,White Ceramic Ring,Light Blue Shock Ring.
W304.BBEG/Y:Black Frame,Black Ceramic Ring,Yellow Shock Ring.

　


　

Stainless Steel Stamped Frame Without Shock Ring

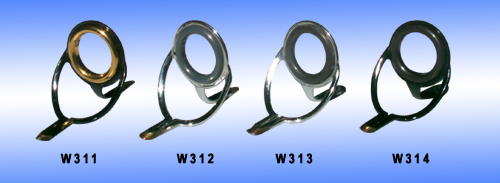

W311.WO/BBTIG:Black Frame,Sic/Tin Coating Ring.
W312.WO/BHG:White Frame,Hardloy Ring.
W313.WO/BAG:White Frame,Alumina Ring.
W314.WO/BBAG:Black Frame,Alumina Ring.

　


　

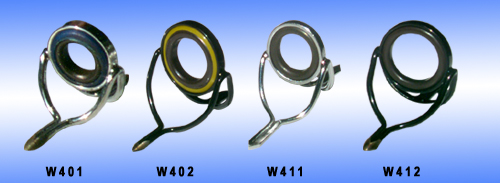

Stainless Steel Wire Frame and Brass Ring
With Shock Ring/Without Shock Ring.

W401.EDG/DE: White Frame, Black Ceramic Ring, Dark Blue Shock Ring.
W402.B)EDG/Y: Black Frame, Black Ceramic Ring, Yellow Shock Ring.
W411.WO/ADG: White Frame, Alumina Ring.
w412.WO/B)ADG: Black Frame, Alumina Ring.

　


　

Stainless Steel Stamped Frame With Shock Ring

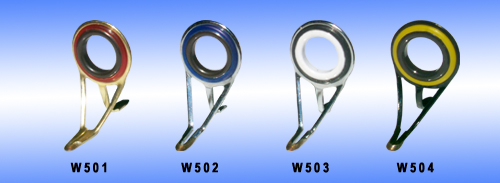

W501.GTEG/LR: Gold Frame, Black Ceramic Ring, Light Red Shock Ring.
W502.TEG/DE: White Frame, Black Ceramic Ring, Dark Blue Shock Ring.
W503.TCG/B: White Frame, White Ceramic Ring, Black Shock Ring.
W504.BTEG/LN: Black Frame, Black Ceramic Ring, Light Green Shock Ring.


　

Stainless Steel Stamped Frame Without Shock Ring

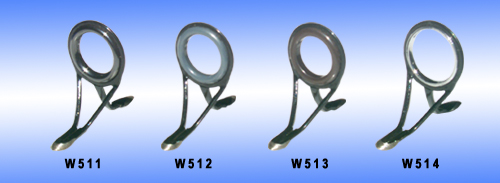

W511.WO/BTSG:Black Frame,Sic Ring.
W512.WO/BTHG:Black Frame,Hardloy Ring.
W513.WO/BTAG:Black Frame,Alumina Ring.
W514.WO/BTDG:Black Frame,Dynaflo Ring.


　

Stainless Steel Wire Frame With Shock Ring

W601.WCG/DE:White Frame,White Ceramic Ring,Dark Black Shock Ring.
W602.WEG/Y:White Frame,Black Ceramic Ring,Yellow Shock Ring.
W603.GWEG/B:Gold Frame,Black Ceramic Ring,Black Shock Ring.
W604.BWEG/DR:Black Frame,Black Ceramic Ring,Dark Red Shock Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring

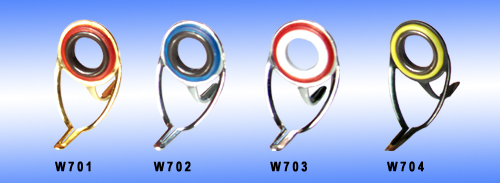

W701.GLEG/DR:Gold Frame,Black Ceramic Ring,Dark Red Shock Ring.
W702.LEG/DE:White Frame,Black Ceramic Ring,Dark Blue Shock Ring.
W703.LCG/LR:White Frame,White Ceramic Ring,Light Red Shock Ring.
W704.BLEG/Y:Black Frame,Black Ceramic Ring,Yellow Shock Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring

W711.WO/LAG: White Frame, Alumina Ring.
W712.WO/LHG: White Frame, Hardloy Ring.
W713.WO/BLSG: Black Frame, Sic Ring.
W714.WO/BLTIG: Black Frame, Sic/Tin Coating Ring

　

　

Stainless Steel Stamped Frame Without Shock Ring

W811.GSLAG:Gold Frame, Alumina Ring.
W812.SLAG:White Frame, Alumina Ring.
W813.USLTSG:Gun Smoke Frame, Copy Sic Ring.
W814.BSLTIG;Black Frame, Sic/Tin Coating Ring.
W815.BSLTSG:Black Frame, Copy Sic Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring

W911.GHLAG:Gold Frame,Alumina Ring.
W912.HLTSG:White Frame,Copy Sic Ring.
W913.UHLAG:Gun Smoke Frame,Alumina Ring.
W914.BHLAG:Black Frame,Alumina Ring.
W915.BHLTSG:Black Frame,Copy Sic Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring

W1011.BLRAG:Black Frame,Alumina Ring.
W1012.BLRTSG:Black Frame,Copy Sic Ring.
 Ring NO.:7.8.10.12.16.20.25.

　

　

Brass Frame And Brass Ring With Shock Ring/Without Shock Ring

W1101.UEG/LR: White Frame, Black Ceramic Ring, Light Red Shock Ring.
W1102.BUEG/LN: Black Frame, Black Ceramic Ring, Light Green Shock Ring.
W1113.WO/UAG: White Frame, Alumina Ring.
W1114.WO/BUAG: Black Frame, Alumina Ring.
Ring NO.:8.10.12.16.20.25.30.


　

Stainless Steel Stamped Frame Without Shock Ring

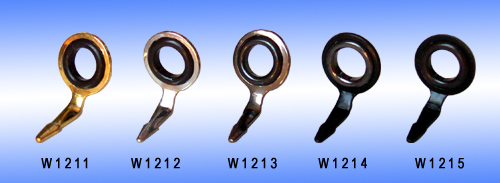

W1211.GMKAG:Gold Frame, Alumina Ring.
W1212.MKAG:White Frame, Alumina Ring.
W1213.UMKTSG:Gun Smoke Frame, Copy Sic Ring.
W1214.BMKTSG: Black Frame, Copy Sic Ring.
W1215.BMKAG:Black Frame, Alumina Ring.
Ring NO.:3.4.5.6.8.

　

　

Stainless Steel Stamped Frame and Plastic-Body/Stainless Steel-Body
With Shock Ring/Without Shock Ring

W1311.P WO/GSFAG: Gold Frame, Alumina Ring.
W1302.PBSFEG/DR: Black Frame, Black Ceramic Ring, Dark Red Shock Ring.
W1303.PSFEG/LN: White Frame, Black Ceramic Ring, Light Green Shock Ring.
W1304.PSFCG/LE: White Frame, White Ceramic Ring, Light Blue Shock Ring.
W1305.NSFCG/LE: White Frame, White Ceramic Light Blue Shock Ring.
Ring NO.:25.30.40.50.

　

　

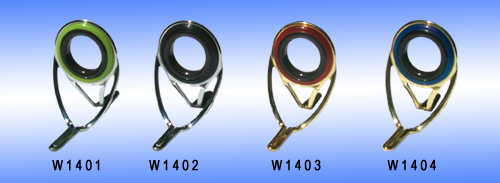

Stainless Steel Stamped Four Leg Frame, With Shock Ring

W1401.OBEG/LN: White Frame, Black Ceramic Ring, Light Green Shock Ring.
W1402.OBEG/B: White Frame, Black Ceramic Ring, Black Shock Ring.
W1403.GOBAG/DR: Gold Frame, Alumina Ring, Dark Red Shock Ring.
W1404.GOBEG/DE: Gold Frame, Black Ceramic Ring, Dark Blue Shock Ring.

　

　

Stainless Steel Stamped Four Leg Frame,Without Shock Ring

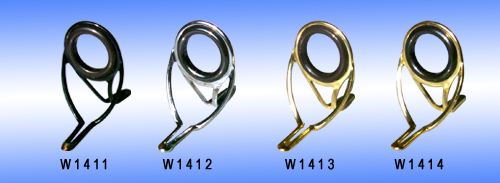

W1411.WO/BOBAG:Black Frame,Alumina Ring.
W1412.WO/OBTSG:White Frame,Copy Sic Ring.
W1413.WO/GOBTSG:Gold Frame,Copy Sic Ring.
W1414.WO/GOBAG:Gold Frame,Alumina Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring

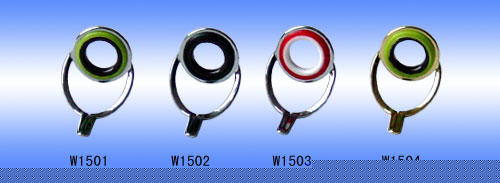

W1501 CBOEG/LN:White Frame.Black Ceramic Ring.Light Green Shock Ring.
W1502 CBOEG/B:White Frame.Black Ceramic Ring.Black Shock Ring.
W1503 CBOEG/LR:White Frame.White Ceramic Ring.Light Red Shock Ring.
W1504 GCBOEG/LN:Gold Frame.Black Ceramic Ring.Light Green Shock Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring

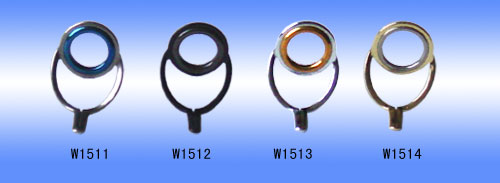

W1511 WO/CBOTBG: White Frame. Blue-Ts Ring.
W1512 WO/BCBOTSG: Black Frame. Ts Ring.
W1513 WO/CBOTIG: White Frame. Sic/Tin Coating Ring.
W1514 WO/GCBOSHG: Gold Frame. Stainless Steel Stamped Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring/Without Shock Ring

W1611 WO/CHSTBG: White Frame. Blue-Ts Ring.
W1612 WO/UCHSTSG: Gun Smoke Frame. Ts Ring.
W1603 BCHSCG/DE: White Frame. White Ceramic Ring.
W1614 WO/BCHSTSG: Black Frame. Ts Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring
W1701 CYEG/B: White Frame. Black Ceramic Ring. Black Shock Ring.
W1702 BCYEG/Y: Black Frame. Black Ceramic Ring. Yellow Shock Ring.
W1703 CYEG/LR: White Frame. Black Ceramic Ring. Light Red Shock Ring.
W1704 GCYCG/LN: Gold Frame. White Ceramic Ring. Light Green Shock Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring

W1711 WO/CYTIG: White Frame. Sic/Tin Ring.
W1712 WO/CYTSG: White Frame. Ts Ring.
W1713 WO/UCYTBG: Gun Smoke Frame. Blue-Ls Ring.
W1714 WO/BCYTSG: Black Frame. Ts Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring/Without Shock Ring
W1811 WO/HOSTSG: White Frame. Ts Ring.
W1812 WO/BHOSTSG: Black Frame. Ts Ring.
W1813 WO/HOSTBG: White Frame. Blue-Ts Ring.
W1804 BHOSCG/DE: Black Frame. White Ceramic Ring. Dark Blue Shock Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring

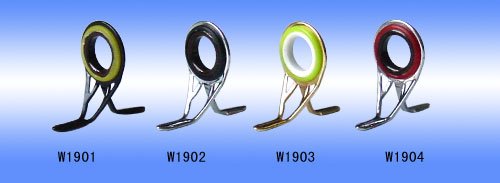

W1901 BCTEG/LN: Black Frame. Black Ceramic Ring. Light Green Shock Ring.
W1902 CTEG/D: White Frame Black Ceramic Ring. Black Shock Ring.
W1903 GCTCG/LN: Gold Frame. White Ceramic Ring. Light Green Shock Ring.
W1904 UCTEG/R: Gun Smoke Frame. Black Ceramic Ring. Red Shock Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring


W1911 WO/BCTTBG: Black Frame. Blue-Ts Ceramic Ring.
W1912 WO/CTTIG: White Frame. Sic/Tin Coating Ring.
W1913 WO/BCTTSG: Black Frame. Ts Ring.
W1914 WO/GCTSHG: Gold Frame. Stainless Steel Stamped Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring/Without Shock Ring

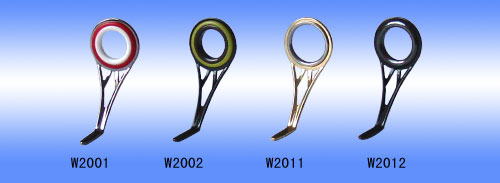

W2001 OYCG/LR: White Frame. White Ceramic Ring. Light Red Shock Ring.
W2002 BOYEG/LN: Black Frame. Black Ceramic Ring. Light Green Shock Ring.
W2011 WO/GOYSHG: Gold Frame. Stainless Steel Stamped Ring.
W2012 WO/BOYHG: Black Frame. Hardloy Ring.

　

　

Stainless Steel Stamped Frame With Shock Ring
W2101 CBEG/B: White Frame. Black Ceramic Ring. Black Shock Ring.
W2102 BCBEG/LN: Black Frame. Black Ceramic Ring. Light Green Shock Ring.
W2103 UCBEEG/DE: Gun Smoke Frame. Black Ceramic Ring. Light Blue Shock Ring.
W2104 GCBCG/LN: Gold Frame. White Ceramic Ring. Light Green Shock Ring.

　

　

Stainless Steel Stamped Frame Without Shock Ring

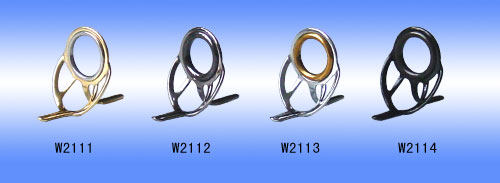

W2111 WO/GCBSHG: Gold Frame. Stainless Steel Stamped Ring.
W2112 WO/UCBTSG: Gun Smoke Frame. Ts Ring.
W2113 WO/CBRIG: White Frame. Sic/Tin Ceramic Ring.
W2114 WO/BCBTSG: Black Frame. A Ring.

　
